Flame Retardant EPS Sandwich Panel
We have 17 Design of Flame Retardant EPS Insulated Sandwich Panels. The Full Product details for Complete panel dimensions, specifications, and drawing can check the below. Only certain colors can be choiced.
Over-lap and Cross-section of Panel Construction
.png)

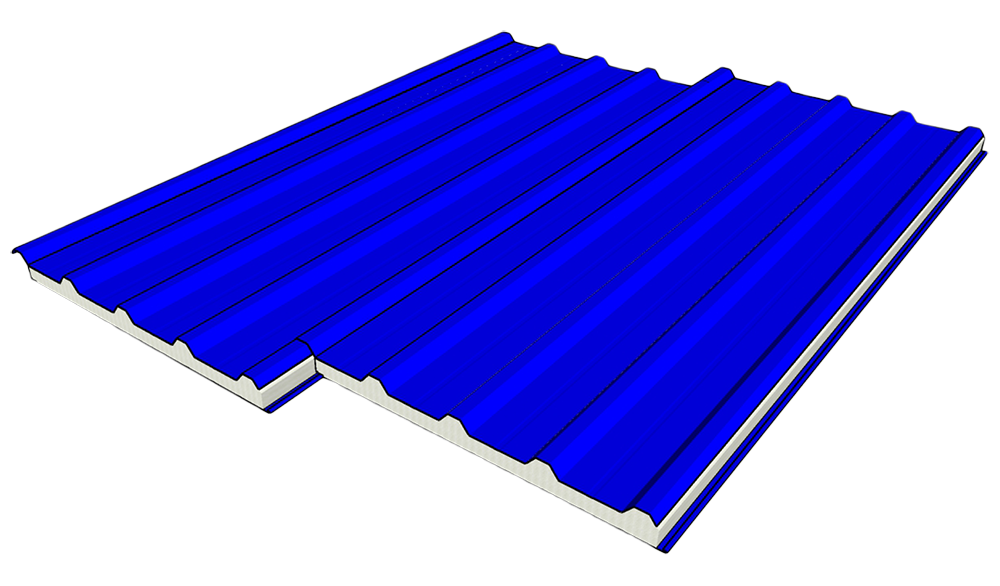

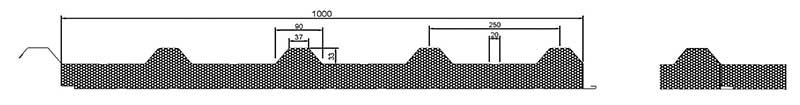

Roof Panel Section Dimension

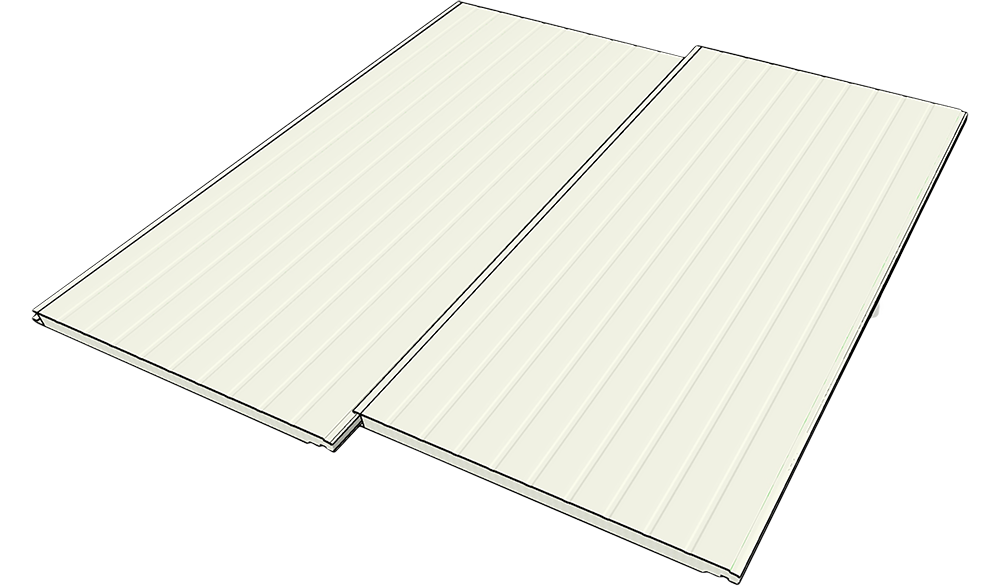

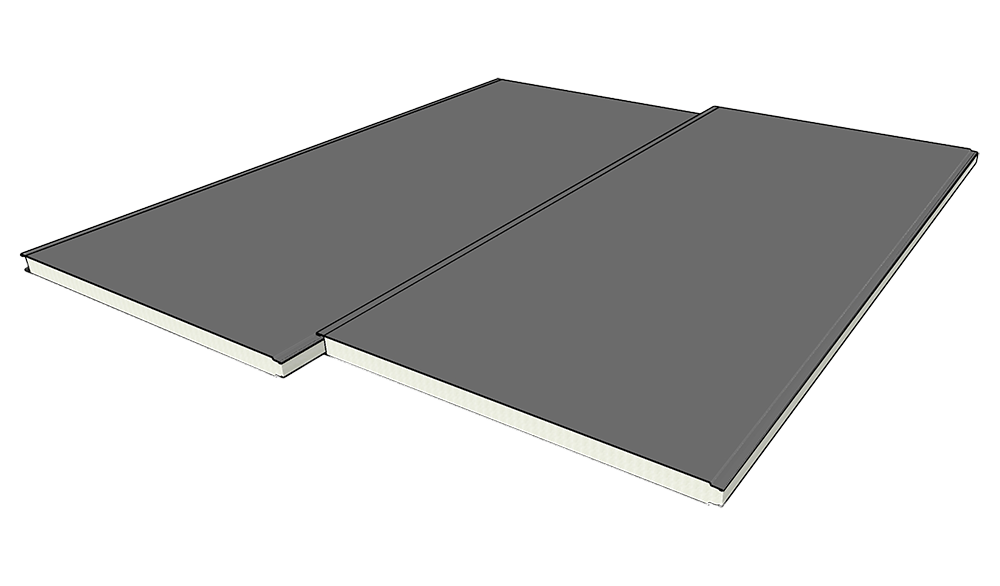

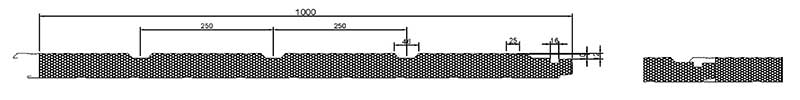

Wall Panel Section Dimension
Wall Panel Section Dimension
| Applications | Roof, exterior wall and interior wall |
| Steel Sheet Thickness | 0.35 to 0.5mm or variable thickness |
| Width | 1,000mm |
| Thickness | 50mm to 150mm or more |
| Lengths | 2,000mm to 18,000 mm or any transportable |
| Insulation | Flame retardant EPS |
| Thermal Conductivity | 0.030 to 0.040 W/m2-K |
| Panel Attachment | Hidden or exposed screw fasteners |
| Standard Coatings | PPGI /PPGL color coat paint |
| Bottom Skin Coatings | PPGI /PPGL color coat paint |
